Hot Water 4GPM-3000PSI,7.5Hp Motor 220V-1Ph,390,000Btu Natural Gas

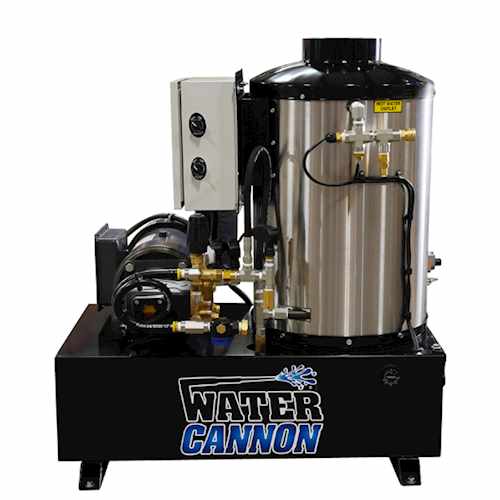

Image shown with optional Auto Start/Stop

Ideal for in-plant, service shop and wash bay systems. These are the most efficient, long lasting machines on the market. Simple in design for ease of maintenance and use. Industry professionals say: “This machine is a game changer.” HOTTER, FASTER & MORE EFFICIENT.



Electric Motors

• Totally enclosed fan cooled full frame 1750 RPM electric motors. Single-phase equipped with a 1.15 service factor, 3 phase equipped with a 1.25 service factor, both are high efficiency.

Industrial Triplex Pumps

• Italian made industrial heavy duty triplex plunger pump with oil bath crankcases, stainless steel valves and brass manifolds.

Heating Coil

• Elliptically wound cold process of stretched reduced full body normalized ASTM A53/APIPSL schedule 80 or 160 pipe. The coil is structurally braced to minimize pipe wear and vibration. It is sealed with a ceramic blanket in a stainless steel housing. Optional:CRN/ASME 30.1 Pressure Vessel Coded Coils

Burners

• Quality North American made natural gas or propane fired burners and controls with adjustable thermostats are used for efficiency, dependability and serviceability. Units are equipped with quick clean burner apparatuses. Burners jets have 6 oxygen orifice inlets to ensure maximum burn and minimize CO results.

Frame

• Rugged 11 gauge and 1/4” bent one piece plate steel frame is fully welded with a powder coat finish. Frames are equipped with 11 gauge steel shrouds with integrated belt guards for maximum serviceability.



Also Includes

• Gun and wand assembly
• 50 feet of high pressure hose
• High pressure chemical injection
• 5 nozzles
• Poly Float Tanks

Specs:

• 4.0 GPM
• 3000 PSI
• 390,000 BTU
• Flange / Coupling
• 7.5 HP
• 220V - 1PH

Manufacturer:	Water Cannon
SKU:	22N08
PSI:	3000
GPM:	4
