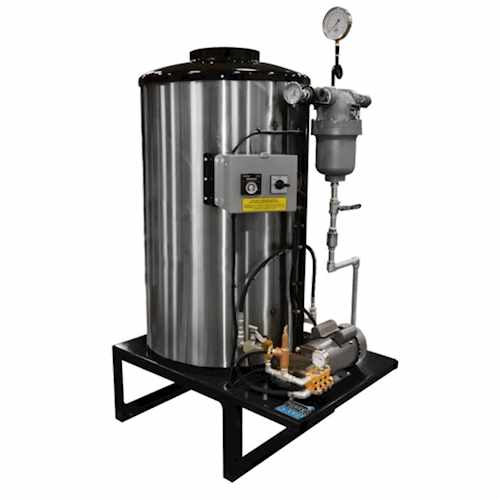

Dry Steam Generator-100PSI-110V-1PH-2HP-1500000BTU

By : Water Cannon

SKU : 25MDS05
Regular Price: $0.00
In Stock
Call to Order 800-333-9274

Dry Steam is used for a wide variety of applications.
· Curing municipal pipe relining systems
· Thawing culverts, pipelines, drains for processing plants, railways, municipalities, and highway departments.
· Degreasing - high temperature raises the effectiveness of chemicals
· Degassing petroleum tanks before maintenance or repair
· Melting debris such as paraffin, wax and grease from traps in wastewater treatment and refineries.
· Cleaning and Restoring - steam is less intrusive than high pressure cleaning for masonry restoration and monument cleaning, etc.
· Removing gum from sidewalks and other like surfaces
· Prepping surfaces for paint
· Purifying soil, mulch, and compost
· Weed Control - kills weeds without the use of chemicals
· Decal Removal


The rugged frame is designed to protect all components and ensure these units are easy to maintain and service.



Electric Motor (2 HP)
· 1750 RPM · TEFC

· Full Frame

· 1.15 Service Factor
· Thermal Overload Protection

· Continuous Duty

· Heavy Duty Triplex Plunger Pump

· Oil Bath Crankcase
· Stainless Steel Valves

· Brass Manifold

· Direct Drive

· Thermo Pump Protector

Control Panel
· Nema 4

· Watertight

· Easy Access
· Heavy Duty On / Off Cam Switch

· Schedule 80 Pipe

· Elliptically Wound & Stretched
· No Seam Welds

· Structurally Braced to Reduce Vibration & Pipe Wear

· Sealed with Ceramic Blanket
· Stainless Steel Housing (Vertical Units)
· Optional CRN/ASME 30.1 Pressure Vessel Coded Coils

· Oil Fired

· Adjustable Thermostat

· On/Off Switch
· North American Made

· Dependable

· Serviceable

· All Welded

· Powder Coated

· Horizontal Units include a 40 Gallon Internal Fuel Tank

· Fuel Tanks are Optional for Vertical Units

· Forklift Slots and Lifting Eyes
· Optional Wheel Kit Available

Safety Features
· Electronic Thermostat with Deviation Control
· Safety Valve

· Flow Control

· Wheel Kit (Add (-WK) To Model Number)
· Skid Frame Option with 225 Gallon
 Water Tank, Forklift Slots & Lifting Eye
· Complete Trailer Package with 225 Gallon Water Tank
· Complete Trailer Package
· Frac Tank Heating Steam Coil
· Fuel Tanks are Optional for Vertical Units


· 40 BHP

· 100 PSI

· 1,500,000 BTU

· 2 HP

· 110 V - 1 Phase

· Vertical Unit Dimension L" x W" x H": 44 x 31 x 62


Manufacturer: Water Cannon
SKU: 25MDS05
