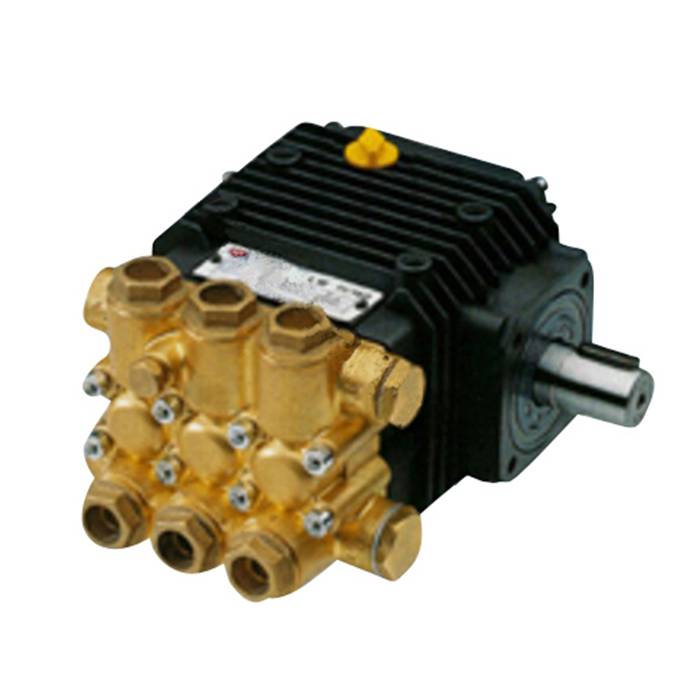

3.5GPM-3000PSI -1750Rpm-24mm Solid Shaft-Fws3530S -Comet Pumps

Comet Pumps FWS3530S 3.5GPM 3000PSI 1750RPM 24mm 4318

Features:

• Reversible crankcase for easy right or left hand mounting
• Solid brass manifolds
• Hardened stainless steel piston guides
• Highly efficient stainless steel check valves
• Solid ceramic plungers
• High and low pressure seals: high quality buna-textile packings
• Additional anti-extrusion ring under the seal
• Special forged brass oversized connecting rods
• Die cast anodized aluminum crankcase
• High quality ball bearings
• Optimal oil bath for high speed operation

FW Series pumps feature anodized, die-cast aluminum crankcase, solid ceramic plungers, stainless steel check valves and piston guides and BUNA-textile V-packings. They have a 24mm solid shaft and a reversible crankcase for easy right-hand or left-hand mounting.

Specifications:

• Maximum flow: 3.5 GPM
• Maximum pressure: 3000 PSI
• Maximum pump speed: 1750 RPM
• Minimum horsepower requirements: 7.5 NHP (11.25 HP for gas engines)
• Inlet: 1/2" FPT
• Discharge: 3/8" FPT
• Shaft diameter: Solid shaft 24mm
• Piston: 18mm
• Crankcase capacity: 17.63 oz. use SAE 20W/30 oil
• Weight: 19.6 lbs.

Lubrication: Fill crankcase with SAE 20W/30 oil per pump specification. Change oil after initial 50 hour break-in period, then in 500 hour intervals thereafter.

Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Water Cannon
SKU:	6411.0100.00
PSI:	3000
GPM:	3.6
Drive Type:	24mm Solid Shaft
Brand:	COMET
RPM:	1750
Plumbing Type:	Not Included
Shaft size:	24 MM
Product MPN:	FWS3530S
Variant MPN:	PMP-FWS23530S
