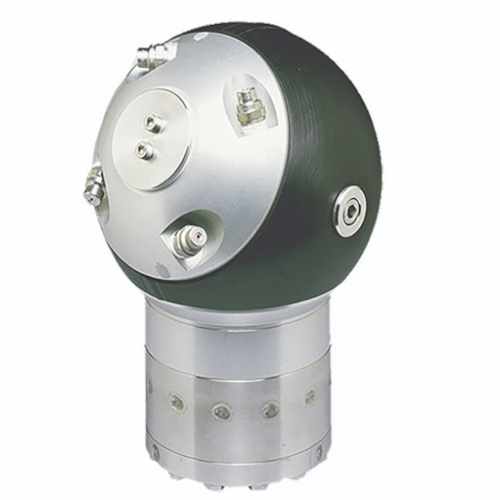

Self Spinning Washing Head - BISW120OB

Self spinning washing heads for containers open on one side. Reduce water consumption by not washing an area of 120 Degree wide at the base of the spray head keeping spray in the container. With a spinning speed of 120 g/min. Aqua Motor.

Introducing the AR North America BISW120OB Bolondi Cleaning Head, engineered for superior durability and optimal performance. Crafted with a long-lasting aluminum 316L stainless steel, it’s 2-4 nozzles can handle 8-31 gpm and up to 2900 psi. With a wide 240° cleaning sector and 150 rotation per 15 seconds, the BISW120OB ensures thorough cleaning. Easy to use with a 1" F water inlet, 7" minimum pass-thru hole, and resilient to temperatures up to 194℉, it's your go-to solution for efficient waste bin care.

Model	PSI	GPM	Minn. Pass Thru Hole	Inlet	Temp
BISW060	2,900	3.9 - 15.8	3.93"	1/2" F	194 Degree F
BISW120OB	2,900	7.9 - 31.7	6.29"	1/2" F	194 Degree F



Self spinning cleaning head without any lubricant
Material: aluminium - aisi 316
Flow: max 60lt/min
Pressure: max 200 bar
Spinning speed: fast
Filter: yes
Application: cleaning sector 240 Degree - bin wash
Water inlet: axial
nozzles: 2-4



TECHNICAL DATA FOR BISW060



TECHNICAL DATA FOR BISW120OB



PLEASE CALL OUR DUCT/TANK CLEANER SPECIALIST, 1-800-333-9274 ext. 140 FOR ADDITIONAL INFORMATION OR TECHNICAL ASSISTANCE



BISW120OB - Cleaning Head Consult MW for Cleaning Head Sizing Specification Worksheet

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Annovi Reverberi
SKU:	BISW120OB
PSI:	2900
GPM:	31.7
Brand:	AR
Diameter:	1/2 INCH
Temperature:	194 F DEGREES
